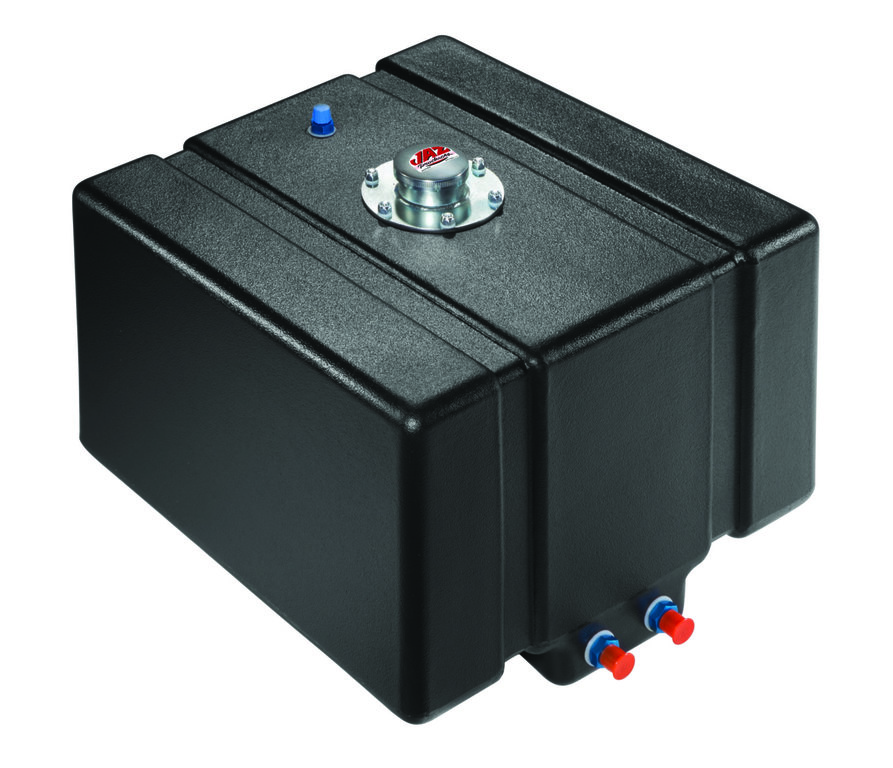

Drag Race Horizontal - Low Pro Fill
Drag Race Horizontal - Low Pro Fill
Drag Race Horizontal - Low Pro Fill

Drag Race Horizontal - Low Pro Fill

Sale Price

or Call for Catalog/Pricing
1-800-525-8133

In Stock Usually ships in 5 days to 1 week
  • Seamless cross-linked polyethylene outer shell
  • Available with or without safety foam
  • Available in black or natural colored material
  • Low pro drag fill 1-3/4" high
  • Two inch deep sump in rear for better fuel pickup
  • Two AN-8 fast flow outlet fittings in the sump
  • One AN-6 vent fitting
  • 360° mounting strap recesses
  • Depth does not include 2" sump
SizeLengthWidthDepthWith Foam Part #No Foam Part #Mount Kit

5 Gal.

Black

13" 13" 8" 290-005-01 290-005-NF 400-005-03

5 Gal.

Natural

13" 13" 8" 290-005-05 290-005-NF5 400-005-03

8 Gal.

Black

20" 15" 7-1/2" 290-008-01 290-008-NF 400-008-03

8 Gal.

Natural

20" 15" 7-1/2" 290-008-05 290-008-NF5 400-008-03

12 Gal.

Black

17-1/2" 16" 10" 290-012-01 290-012-NF 400-012-03

12 Gal.

Natural

17-1/2" 16" 10" 290-012-05 290-012-NF5 400-012-03

16 Gal.

Black

25" 17" 9" 290-016-01 290-016-NF 400-016-03

16 Gal.

Natural

25" 17" 9" 290-016-05 290-016-NF5 400-016-03

16 Gal.

Black

18-1/2" 18-1/2" 12" 290-116-01 290-116-NF 400-116-03

16 Gal.

Natural

18-1/2" 18-1/2" 12" 290-116-05 290-116-NF5 400-116-03



What Makes Jaz Fuel Cells the Best Value?

JAZ Products maintains its own factory, equipment and molds, producing the highest quality fuel cells, rotationally molded in seamless cross-linked polyethylene. JAZ Products only uses safety foam in all their fuel cells. This foam is far superior and has a 10 times longer service life than that of other non fuel approved foams on the market. All JAZ polyethylene fuel cells exceed SFI Spec. 28.1 and are accepted by most sanctioning organizations.

Although all JAZ Products polyethylene fuel cells exceed SFI Spec. 28.1, only fuel cells labeled “THIS FUEL CELL CARRIES SFI CERTIFICATION” are actually certified. Only the fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. If the fuel cell you require does not come standard with certification, JAZ Products can SFI certify any cell (with foam) in this catalog for a nominal fee of $100.00. If you have any questions regarding the SFI certification, or which fuel cell will fit your needs best, call our technical pros, and they can help you make the right decision regarding your application.
