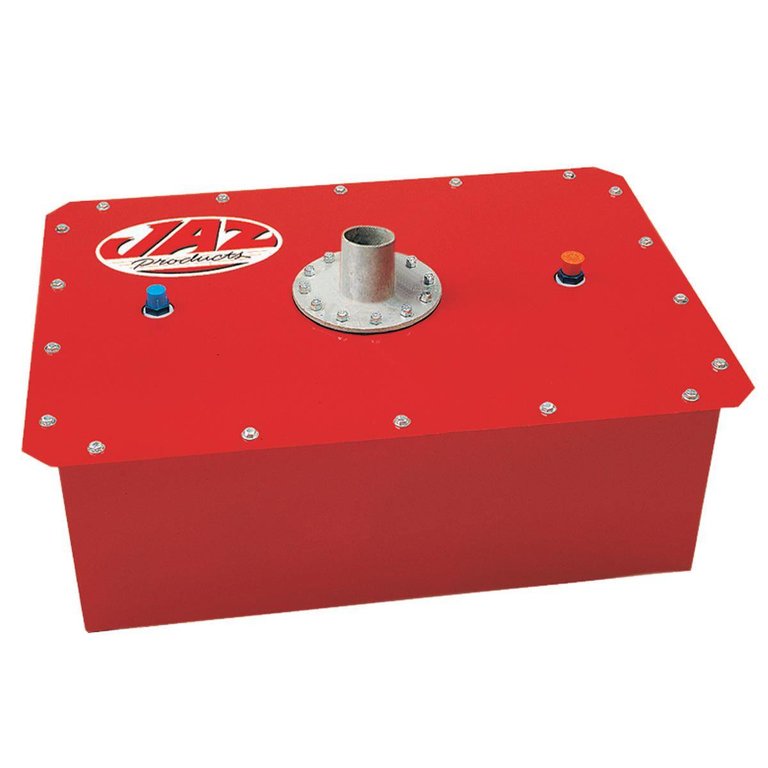

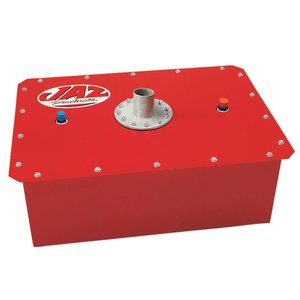

Pro Sport With 90-Degree Flapper Filler
Pro Sport With 90-Degree Flapper Filler
Pro Sport With 90-Degree Flapper Filler

Pro Sport With 90-Degree Flapper Filler

Sale Price

or Call for Catalog/Pricing
1-800-525-8133

In Stock Usually ships immediately

  • Seamless cross-linked polyethylene inner shell
  • 20 gauge welded steel container powder coated red
  • Available with or without safety foam
  • 90-degree filler neck with spring loaded flapper
  • Available in 2-1/4" neck diameter
  • One AN-8 fuel pickup fitting
  • One AN-8 tip over valve vent fitting
  • Pickup hose routed to right rear corner
  • 2-1/4" neck is 4" high
SizeLengthWidthDepth

2-1/4"

With Foam

2-1/4"

No Foam

4 Gal.  13" 11-1/8" 9-1/8" 282-004-06 282-004-NF
8 Gal.  20-5/8" 15-1/2" 8-3/8" 282-008-06 282-008-NF
12 Gal.  18" 16-1/2" 10-1/2" 282-012-06 282-012-NF
16 Gal.  26" 18" 10" 282-016-06 282-016-NF
16 Gal.  19" 19" 12-1/2" 282-116-06 282-116-NF
22 Gal.  25-5/8" 25-5/8" 9-1/4" 282-022-06 282-222-NF
22 Gal.  34-1/2" 18-3/4" 10-1/2" 282-122-06 282-122-NF
22 Gal. 25-3/4" 17-3/8" 14-1/2" 282-222-06 282-222-NF
32 Gal.  34" 17-3/8" 14-3/8" 282-032-06 282-032-NF
32 Gal.  26-5/8" 18-5/8" 18-5/8" 282-132-06 282-132-NF



SizeLengthWidthDepth

2-1/4"

With Foam

2-1/4"

No Foam

12 Gal. Black  18" 16-1/2" 10-1/2" 282-012-01 282-012-NF1
16 Gal. Black 26" 18" 10" 282-016-01 282-016-NF1
22 Gal. Black 25-3/4" 17-3/8" 14-1/2" 282-222-01 282-222-NF1
32 Gal. Black 26-5/8" 18-5/8" 18-5/8" 282-132-01 282-132-NF1

What Makes Jaz Fuel Cells the Best Value?

JAZ Products maintains its own factory, equipment and molds, producing the highest quality fuel cells, rotationally molded in seamless cross-linked polyethylene. JAZ Products only uses safety foam in all their fuel cells. This foam is far superior and has a 10 times longer service life than that of other non fuel approved foams on the market. All JAZ polyethylene fuel cells exceed SFI Spec. 28.1 and are accepted by most sanctioning organizations.

Although all JAZ Products polyethylene fuel cells exceed SFI Spec. 28.1, only fuel cells labeled “THIS FUEL CELL CARRIES SFI CERTIFICATION” are actually certified. Only the fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. If the fuel cell you require does not come standard with certification, JAZ Products can SFI certify any cell (with foam) in this catalog for a nominal fee of $100.00. If you have any questions regarding the SFI certification, or which fuel cell will fit your needs best, call our technical pros, and they can help you make the right decision regarding your application.
